| Specifications |
|

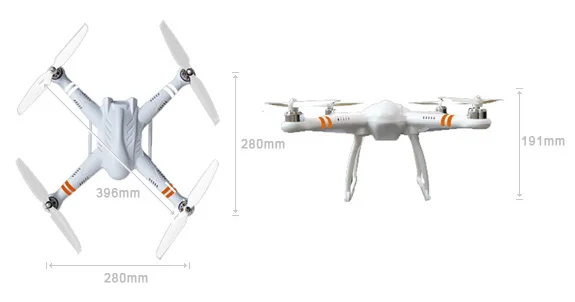

| Width & Length: | 280mm |
| Height: | 191mm |
| Diagonal base: | 396mm |
| Propeller Size: | Standard 9 inch (Supports upto 10 inch Propeller) |
| Flight Endurance: | About 15 minutes with standard 11.1v 2200mAh Battery |
| Weight: | 840g (Include the battery) |
| Parameters: | Max Rudder Angle Speed: | 150 /s |
| Max Angle of Inclination: | 45 |
| Max Lifting Speed: | 3.5m/s |
| Max Flight Speed: | 30km/h |
| Electronics | Motor | 2212-1050KV Brushless Motor |
| ESC | 15AX Brushless ESC |
| Receiver | Free X Receiver |
| Transmitter | Free X transmitter |
| Battery | 11.1V 2200mAh or 2700mAh Lithium Polymer |
| Fight Control Board module | FreeX Onetouch 4 and UAV Grade FREE-X GPS |
| Charger | Input Voltage | 100-240V |
| Output Current: | 1A Battery |
| Compatibility : | 7.4V/11.1V |
| Transmitter Specifications | Transmission Frequency: | 2.4GHz Frequency Hopping 7 CH Transmitter |
| Output Power: | < 100mW |
| Current Consumption: | < 230mA (100mWh) |
| Output Pulse: | 1000-2000mS (SUB TRIM is 1500) |
| Control Distance (Outdoor/no stop): | 1km |
